Plastik Air Adapter Cepat Konektor Fitting Untuk RO Water Dispenser Dan Air Purifer
Air Adapter Cepat terhubung untuk RO membalikkan dispenser air Osmosis, aplikasi purifer air inline lurus katup, Elbow, tee, tee cabang, sekat, jenis Y, pluger, check valve, katup bola, Arus pembatas, Shut-off, ukuran tabung 1/4 ", 3/8" ukuran benang 1/8 "~ 1/2" misalnya WC-002
Detil Cepat:
* W adapter air Series cepat menghubungkan
* Materi perumahan POM, ABS
* Materi tingkat kesehatan makanan, keamanan, tidak beracun, sanitasi
* Jenis lurus, jenis siku, jenis Tee, tipe Y, jenis sekat, jenis konektor, jenis sekat, check valve, katup bola
* Kunci cakar bahan stainless steel, ketat dan stabil
* Penyegelan yang baik menjaga dari kebocoran air
* Instalasi cepat, mudah dan fleksibel menghubungkan, menghemat ruang
* Model diversfied memenuhi kebutuhan pekerjaan pipa
* Benang tersedia dalam G, PT, NPT, METRIC
* Ukuran tabung yang tersedia 1/4 ", 3/8"
* Ukuran benang tersedia 1/8 ", 3/8", 1/2 "
* Desain stabil, layanan panjang siklus hidup
Aplikasi:
W series cepat menghubungkan adapter air yang digunakan secara luas RO terbalik Osmosis dispenser air, purifer air, sistem Watewater dan makanan, minuman industri
spesifikasi:
1, bahan Perumahan: POM
2, bahan Claw: Stainless steel
3, Bekerja tekanan: 0 ~ 15Bar
4, Tekanan Toleransi: 30Bar
5, Bekerja Suhu: 0 ~ 60 ℃
Tepat Angle 90 ° Ball Valve Untuk RO Air aki Tank |
MODEL | tabung OD | TUBE OD | FOTO |
WB-001 | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " |
Cepat katup Connect Inline Bola |
MODEL | tabung OD | TUBE OD | FOTO |
WB-002 | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " |
Thread Dan Quick Connect Inline Ball Valve |
MODEL | tabung OD | Ukuran benang | FOTO |
WB-003 | 1/4 " | 1/4 " |  |
1/4 " | 1/2 " |
3/8 " | 3/8 " |
Keramik Inti Ball Valve Untuk RO Air aki Tank |
MODEL | tabung OD | TUBE OD | FOTO |
WB-004 | 1/4 " | 1/4 " |  |
Quick Connect Air Adapter Union Tee |
MODEL | TUBE OD (L) | TUBE OD (M) | TUBE OD (R) | FOTO |
WT-001 | 1/4 " | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " | 3/8 " |
3/8 " | 1/4 " | 3/8 " |
1/4 " | 3/8 " | 1/4 " |
1/4 " | 1/4 " | 3/8 " |
3/8 " | 3/8 " | 1/4 " |
Quick Connect Air Adapter Cabang Tee |
MODEL | TUBE OD (L) | TUBE OD (M) | Ukuran benang | FOTO |
WT-002 | 1/4 " | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " | 3/8 " |
3/8 " | 1/4 " | 3/8 " |
1/4 " | 3/8 " | 1/4 " |
1/4 " | 1/4 " | 3/8 " |
3/8 " | 3/8 " | 1/4 " |
Quick Connect Air Adapter Plug Tee |
MODEL | TUBE OD (L) | TUBE OD (R) | PLUGER OD | FOTO |
WT-003 | 1/4 " | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " | 3/8 " |
3/8 " | 1/4 " | 3/8 " |
1/4 " | 3/8 " | 1/4 " |
1/4 " | 1/4 " | 3/8 " |
3/8 " | 3/8 " | 1/4 " |
Quick Connect Air Adapter Pria Thread Tee |
MODEL | TUBE OD (L) | TUBE OD (R) | Ukuran benang | FOTO |
WT-004 | 1/4 " | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " | 3/8 " |
3/8 " | 1/4 " | 3/8 " |
1/4 " | 3/8 " | 1/4 " |
1/4 " | 1/4 " | 3/8 " |
3/8 " | 3/8 " | 1/4 " |
Quick Connect Air Adapter Plug Cabang Tee |
MODEL | TUBE OD (L) | TUBE OD (R) | PLUGER OD | FOTO |
WT-005 | 1/4 " | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " | 3/8 " |
3/8 " | 1/4 " | 3/8 " |
1/4 " | 3/8 " | 1/4 " |
1/4 " | 1/4 " | 3/8 " |
3/8 " | 3/8 " | 1/4 " |
Quick Connect Air Adapter Elbow Check Valve |
MODEL | tabung OD | TUBE OD | FOTO |
WL-001 | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " |
Quick Connect Air Adapter Pria Elbow (Kecil Thread jenis ukuran) |
MODEL | tabung OD | TUBE OD | FOTO |
WL-002 | 1/4 " | 1/8 " |  |
3/8 " | 1/8 " |
Quick Connect Air Adapter Elbow Union |
MODEL | tabung OD | tabung OD | FOTO |
WL-003 | 1/4 " | 1/4 " |  |
1/4 " | 3/8 " |
3/8 " | 1/4 " |

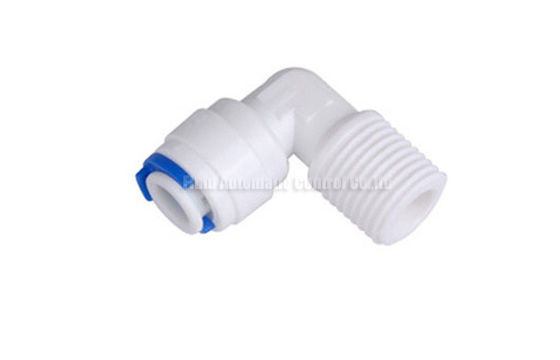

Quick Connect Air Adapter Pria Elbow (Big Thread Type) |
MODEL | tabung OD | Ukuran benang | FOTO |
WL-004 | 1/4 " | 1/4 " |  |
3/8 " | 1/4 " |
1/4 " | 3/8 " |
3/8 " | 3/8 " |
3/8 " | 1/2 " |
1/4 " | 1/2 " |
Quick Connect Air Adapter Pria Elbow Ekstensi |
MODEL | tabung OD | Ukuran benang | FOTO |
WL-005 | 1/4 " | 1/4 " |  |
Quick Connect Air Adapter Pria Elbow (Big Thread Type) |
MODEL | tabung OD | Ukuran benang | FOTO |
WL-004 | 1/4 " | 1/4 " |  |
1/4 " | 1/8 " |
1/4 " | 3/8 " |
1/4 " | 1/2 " |
3/8 " | 1/4 " |
3/8 " | 3/8 " |
3/8 " | 1/2 " |
Quick Connect Air Adapter Elbow Plug |
MODEL | TUBE OD (R) | PLUGER OD | FOTO |
WL-007 | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " |
1/4 " | 3/8 " |
3/8 " | 1/4 " |
Quick Connect Air Adapter Union Lurus |
MODEL | tabung OD | Ukuran benang | FOTO |
WC-001 | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " |
1/4 " | 3/8 " |
3/8 " | 3/8 " |
Quick Connect Air Adapter Pria Lurus |
MODEL | tabung OD | Ukuran benang | FOTO |
WC-002 | 1/4 " | 1/4 " |  |
1/4 " | 1/8 " |
1/4 " | 3/8 " |
1/4 " | 1/2 " |
3/8 " | 1/4 " |
3/8 " | 3/8 " |
3/8 " | 1/2 " |
Quick Connect Air Adapter Perempuan Lurus |
MODEL | tabung OD | Ukuran benang | FOTO |
WC-003 | 1/4 " | 1/4 " |  |
1/4 " | 3/8 " |
1/4 " | 1/2 " |
3/8 " | 1/4 " |
3/8 " | 3/8 " |
3/8 " | 1/2 " |
Quick Connect Air Adapter Bulkhead |
MODEL | TUBE OD | TUBE OD | Ukuran benang | FOTO |
WC-004 | 1/4 " | 1/4 " | M16.5 |  |
3/8 " | 3/8 " | M20 |
3/8 " | 1/4 " | M20 |
Quick Connect Air Adapter Plug Lurus |
MODEL | tabung OD | PLUGER OD | FOTO |
WC-005 | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " |
1/4 " | 3/8 " |
3/8 " | 1/4 " |
Quick Connect Air Adapter Lurus Check Valve |
MODEL | tabung OD | TUBE OD | FOTO |
WL-006 | 1/4 " | 1/4 " |  |
Quick Connect Air Adapter Union Y |
MODEL | TUBE OD (IN) | TUBE OD (OUT) | TUBE OD (OUT) | FOTO |
WY-001 | 1/4 " | 1/4 " | 1/4 " |  |
3/8 " | 3/8 " | 3/8 " |
3/8 " | 1/4 " | 1/4 " |
1/4 " | 3/8 " | 3/8 " |
Connect Cepat Arus pembatas |
Model | Tabung od (di) | Tabung od (keluar) | Bahan | Kerja tekanan | debit aliran | berlaku mesin ro | Foto |
FR-300 | 1/4 " | 1/4 " | ABS | 1 ~ 8bar | 300CC | 50Gallon / 75Gallon |  |
FR-450 | 1/4 " | 1/4 " | 450cc | 100Gallon |
Connect Cepat Shut-off Valve |
Model | Tabung od (di) | Tabung od (keluar) | Bahan | Max. Tekanan Pekerjaan | Diferensial tekanan | rasio berhenti | Foto |
SV-001 | 1/4 "x2 | 1/4 "x2 | POM | 8bar | 3bar ± 0,2 | 1: 2 |  |
Adapter air, cepat air connect pas, RO adpater air
